Documentation CI Architecture

Purpose

The documentation CI pipeline serves three guarantees:

1. Quality — every documentation change in any aggregated repository is validated for broken links, spelling errors, and inclusive language before it can influence the published site.
2. Preview — contributors and reviewers can inspect exactly how a pull request's documentation changes will look on the live site, via a Netlify deploy preview attached to an automated draft PR in docs-ng.
3. Always latest docs — once a PR of an agregrated repository (source PR) is merged, the repos-config.json commit lock for that repository is automatically updated so the published site reflects the latest content without any manual intervention.

These three properties are implemented by four GitHub Actions workflows that span two repository boundaries. See CI Workflows Reference for the per-workflow details.

Actors and Repositories

gardenlinux/docs-ng

The central aggregation hub. It hosts:

• The reusable quality-checks workflow (docs-checks.yml), which can be called from any aggregated repo.
• The automated PR workflow (docs-pr.yml), which creates and maintains draft PRs in docs-ng when aggregated repos signal a documentation change.
• The config validator workflow (check-pr-main.yml), which guards main against non-production refs in repos-config.json.
• The repos-config.json file that records which repo and which exact commit is currently published.

Aggregated repositories

Each repository listed in repos-config.json contains docs-check.yml workflow that:

• reacts to pull request and push events on documentation-relevant paths,
• calls the reusable docs-checks.yml from docs-ng, passing the PR's branch and commit as override inputs, and
• on success (or on merge), dispatches a repository_dispatch event to docs-ng to trigger the automated PR workflow.

gardenlinux-docs-bot GitHub App

A GitHub App with write access to both docs-ng and the aggregated repositories. It is used to:

• generate short-lived tokens that allow cross-repository API calls without using a personal access token,
• open and update draft PRs in docs-ng, and
• post preview comments back on aggregated repo PRs.

Required secrets (configured in each aggregated repository):

Secret	Purpose
DOCS_BOT_APP_ID	Identifies the GitHub App
DOCS_BOT_PRIVATE_KEY	Signs the JWT used to obtain installation tokens

Netlify

docs-ng has a Netlify integration that automatically creates a deploy preview for every open PR. The docs-pr.yml workflow posts the preview URL as a comment on the originating aggregated repo PR so reviewers do not have to navigate to docs-ng manually.

High-Level Flow

The diagram below shows the path from a documentation change in an aggregated repository through to a merged commit lock update in docs-ng.

flowchart TD
    A[Developer opens / updates PR\nin aggregated repo] --> B

    subgraph source["Aggregated Repo (e.g. gardenlinux)"]
        B["docs-check.yml\ntriggered by PR event\non docs/** paths"]
        B --> C["calls reusable workflow\ndocs-checks.yml @ docs-ng\nwith override-repo, override-ref,\noverride-commit"]
    end

    subgraph docsng["gardenlinux/docs-ng"]
        C --> D["docs-checks.yml\nJob: aggregate\n(runs aggregate.py with overrides)"]
        D --> E["Job: linkcheck\n(lychee)"]
        D --> F["Job: spelling\n(codespell via make spelling)"]
        D --> G["Job: woke\n(inclusive language)"]
    end

    E & F & G -->|all pass| H["notify-docs-ng job\nin aggregated repo"]
    H -->|repository_dispatch\nevent: docs-pr| I

    subgraph docsng2["gardenlinux/docs-ng"]
        I["docs-pr.yml\ncreates or updates branch\nauto/<repo>/<pr-number>"]
        I --> J["Updates repos-config.json\ncommit lock"]
        J --> K["git push -f\nOpens / updates draft PR\nin docs-ng"]
        K --> L["Posts preview comment\non source repo PR"]
        K --> M["check-pr-main.yml\nvalidates repos-config.json\nref must be main or semver"]
        K --> N["Netlify deploy preview\nbuilt from draft PR branch"]
    end

    L --> O[Reviewer sees\npreview link on source PR]
    N --> O

    O --> P{Source PR merged?}
    P -->|yes| Q["docs-check.yml\nclosed+merged event\nskips quality checks\ndispatches event=merged"]
    Q --> R["docs-pr.yml\nupdates lock to merge commit\nsets ref to base branch\nun-drafts PR in docs-ng"]
    R --> S[Maintainer merges\ndocs-ng PR]
    S --> T[Published site updated]

    P -->|no, more commits| A

Sequence Diagrams

Scenario A — PR opened or synchronized in an aggregated repo

The following diagram shows the event sequence when a contributor opens a new PR (or pushes additional commits to an open PR) in an aggregated repository. The sequence assumes the aggreagred repository already has docs-check.yml installed and the docs-related path filter matches.

sequenceDiagram
    autonumber
    actor Dev as Developer
    participant SrcRepo as Aggregated Repo<br/>(e.g. gardenlinux)
    participant DocsNG as gardenlinux/docs-ng
    participant Bot as gardenlinux-docs-bot
    participant Netlify

    Dev->>SrcRepo: push commit to PR branch<br/>(docs/** path changed)
    SrcRepo->>SrcRepo: docs-check.yml triggered<br/>(PR opened / synchronize)
    SrcRepo->>DocsNG: workflow_call → docs-checks.yml<br/>override-repo, override-ref, override-commit
    DocsNG->>DocsNG: aggregate job<br/>(aggregate.py with overrides)
    DocsNG->>DocsNG: linkcheck job (lychee)
    DocsNG->>DocsNG: spelling job (codespell)
    DocsNG->>DocsNG: woke job (inclusive language)

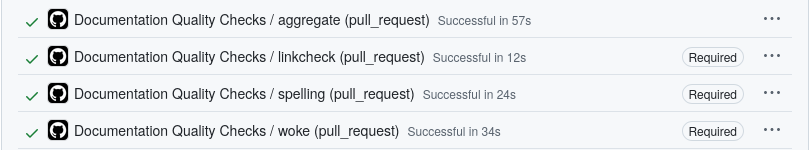

    DocsNG-->>SrcRepo: all checks pass ✓
    SrcRepo->>SrcRepo: notify-docs-ng job runs
    SrcRepo->>Bot: create GitHub App token<br/>(repos: docs-ng, aggregated repo)
    SrcRepo->>DocsNG: repository_dispatch<br/>event_type: docs-pr<br/>payload: {repo, pr_number, commit_sha, ref, event: pr_success}
    DocsNG->>DocsNG: docs-pr.yml triggered
    DocsNG->>DocsNG: create/update branch<br/>auto/<repo>/<pr_number>
    DocsNG->>DocsNG: update repos-config.json<br/>commit lock → override-commit
    DocsNG->>DocsNG: git push -f to branch
    DocsNG->>DocsNG: open/update draft PR in docs-ng<br/>(status: Draft)
    DocsNG->>DocsNG: check-pr-main.yml validates<br/>repos-config.json refs
    Netlify->>Netlify: build deploy preview<br/>from draft PR branch
    Bot->>SrcRepo: post/update comment on source PR<br/>📚 Preview PR link<br/>😎 Netlify deploy preview URL
    Dev-->>SrcRepo: sees preview link in PR comment

Scenario B — Source PR merged

When the source PR is merged, docs-check.yml fires again with action: closed and merged: true. The quality checks are skipped; only the notification job runs to promote the draft docs-ng PR to ready-for-review.

sequenceDiagram
    autonumber
    actor Maint as Maintainer
    participant SrcRepo as Aggregated Repo
    participant DocsNG as gardenlinux/docs-ng
    participant Bot as gardenlinux-docs-bot

    Maint->>SrcRepo: merge PR into main
    SrcRepo->>SrcRepo: docs-check.yml triggered<br/>(PR closed + merged = true)<br/>docs-checks job SKIPPED
    SrcRepo->>SrcRepo: notify-docs-ng job runs<br/>(always, merged condition)
    SrcRepo->>Bot: create GitHub App token
    SrcRepo->>DocsNG: repository_dispatch<br/>event_type: docs-pr<br/>payload: {repo, pr_number,<br/>commit_sha: merge_commit_sha,<br/>ref: base_branch,<br/>event: merged}
    DocsNG->>DocsNG: docs-pr.yml triggered
    DocsNG->>DocsNG: update branch auto/<repo>/<pr_number>
    DocsNG->>DocsNG: update repos-config.json<br/>commit → merge_commit_sha<br/>ref → base branch (main)
    DocsNG->>DocsNG: git push -f to branch
    DocsNG->>DocsNG: update existing PR:<br/>draft: false (ready for review)<br/>status: "Ready for review"
    Bot->>SrcRepo: update comment on source PR<br/>with current status
    Maint->>DocsNG: review and merge docs-ng PR
    DocsNG->>DocsNG: published site updated<br/>(next aggregation run picks up new lock)

Failure Modes

The following scenarios describe what can go wrong and where the failure will be visible.

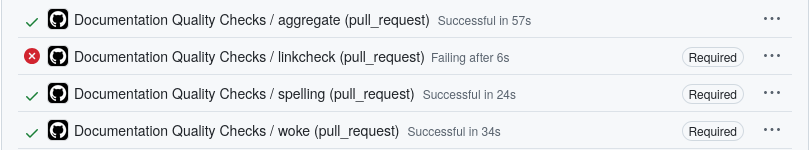

Quality checks fail in the aggregated repo

If any of the linkcheck, spelling, or woke jobs in docs-checks.yml fail, the notify-docs-ng job in docs-check.yml does not run (the needs: [docs-checks] condition result == 'success' is not met). No dispatch event is sent to docs-ng, and no draft PR is created or updated.

The failure is visible as a failed status check directly on the aggregated repo PR.

Draft PR not created / not updated

If the docs-pr.yml workflow fails (e.g., because the GitHub App token cannot be obtained, or because the repos-config.json entry for the aggregated repo does not exist), no draft PR is opened and no comment is posted.

Check the docs-pr.yml run in the Actions tab of docs-ng for the error.

check-pr-main.yml blocks the docs-ng PR

If the docs-ng draft PR's repos-config.json still contains a non-main, non-semver ref when someone tries to merge it to main, check-pr-main.yml will fail and prevent the merge. This happens if the source PR was never merged (the draft PR still points at a feature branch ref).

The fix is to either wait for the source PR to be merged (which will update the ref to main) or to close the draft PR if the source PR was abandoned.

Netlify preview not available

Netlify deploy previews are only triggered when the draft PR is open. If the preview build fails, reviewers can still validate locally:

make aggregate-local   # uses repos-config.local.json with file:// URLs
make dev               # start local VitePress server

See Working Locally and Testing for details.

Where to Look When Something Breaks

Symptom	Where to look
aggregatated-repo (source) PR missing docs status check	Actions tab of the aggregated repo → Documentation Quality Check run
Quality check job details (which lint rule failed)	Expand the failing job step in the aggregated repo Actions run
No comment on source PR with preview link	Actions tab of docs-ng → Create/Update Docs PR run; check the Comment on source PR step
Draft PR in docs-ng not created	Actions tab of docs-ng → Create/Update Docs PR run; check Create or update branch and Create or update PR steps
repos-config.json ref validation fails	Checks tab on the draft PR in docs-ng → Validate repos-config.json run
Netlify preview not building	Netlify dashboard → deploy log for the docs-ng PR branch
Bot cannot authenticate	Verify DOCS_BOT_APP_ID and DOCS_BOT_PRIVATE_KEY secrets are set in the aggregated repository's settings
